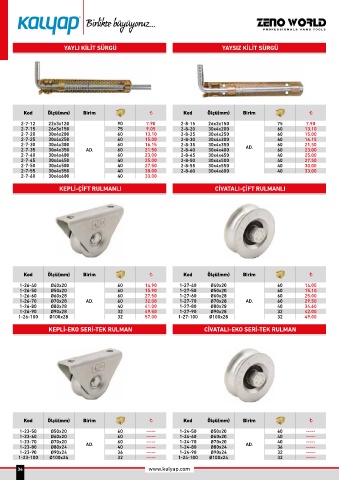

Page 36 - kalyap katalog 2019111son

YAYLI KİLİT SÜRGÜ YAYSIZ KİLİT SÜRGÜ

Kod Ölçü(mm) Birim ¨ Kod Ölçü(mm) Birim ¨
2-7-12 22x3x120 90 7.90 2-8-15 26x3x150 75 7.90
2-7-15 26x3x150 75 9.05 2-8-20 30x4x200 60 13.10
2-7-20 30x4x200 60 13.10 2-8-25 30x4x250 60 15.00
2-7-25 30x4x250 60 15.00 2-8-30 30x4x300 60 16.15
2-7-30 30x4x300 60 16.15 2-8-35 30x4x350 AD. 60 21.50
2-7-35 30x4x350 AD. 60 21.50 2-8-40 30x4x400 60 23.00
2-7-40 30x4x400 60 23.00 2-8-45 30x4x450 40 25.00
2-7-45 30x4x450 40 25.00 2-8-50 30x4x500 40 27.50
2-7-50 30x4x500 40 27.50 2-8-55 30x4x550 40 30.00
2-7-55 30x4x550 40 30.00 2-8-60 30x4x600 40 33.00
2-7-60 30x4x600 40 33.00
KEPLİ-ÇİFT RULMANLI CİVATALI-ÇİFT RULMANLI

Kod Ölçü(mm) Birim ¨ Kod Ölçü(mm) Birim ¨
1-26-40 Ø40x20 60 14.90 1-27-40 Ø40x20 60 14.05
1-26-50 Ø50x20 60 15.90 1-27-50 Ø50x20 60 15.10
1-26-60 Ø60x28 60 27.50 1-27-60 Ø60x28 60 25.00
1-26-70 Ø70x28 AD. 60 32.00 1-27-70 Ø70x28 AD. 60 29.50
1-26-80 Ø80x28 40 41.00 1-27-80 Ø80x28 40 34.60
1-26-90 Ø90x28 32 49.50 1-27-90 Ø90x28 32 42.00
1-26-100 Ø100x28 32 57.00 1-27-100 Ø100x28 32 49.00
KEPLİ-EKO SERİ-TEK RULMAN CİVATALI-EKO SERİ-TEK RULMAN

Kod Ölçü(mm) Birim ¨ Kod Ölçü(mm) Birim ¨
1-23-50 Ø50x20 60 ----- 1-24-50 Ø50x20 60 -----
1-23-60 Ø60x20 60 ----- 1-24-60 Ø60x20 40 -----
1-23-70 Ø70x20 AD. 60 ----- 1-24-70 Ø70x20 AD. 40 -----
1-23-80 Ø80x24 40 ----- 1-24-80 Ø80x24 36 -----
1-23-90 Ø90x24 36 ----- 1-24-90 Ø90x24 32 -----
1-23-100 Ø100x24 32 ----- 1-24-100 Ø100x24 32 -----
34 www.kalyap.com
